Which Styku model do I have?

Styku currently has 2 models, the Styku S100 and Styku S100x. There are several differences between the two. To determine which model you have read the following article.

Styku S100

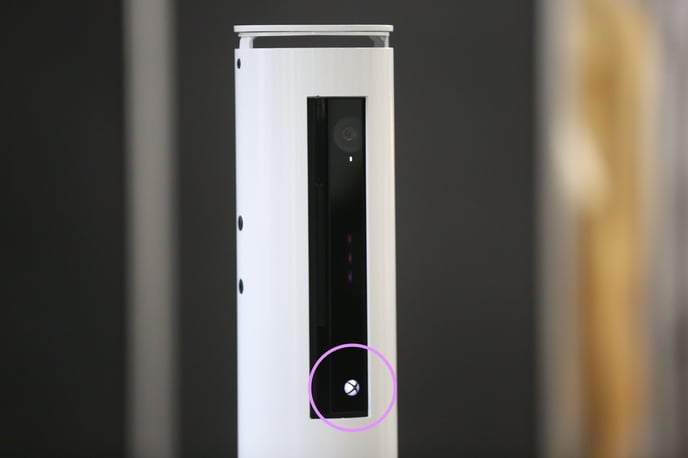

The Styku S100 uses the Microsoft Kinect sensor to perform scans. The sensor camera has a xbox logo on the front.



7M2A0679

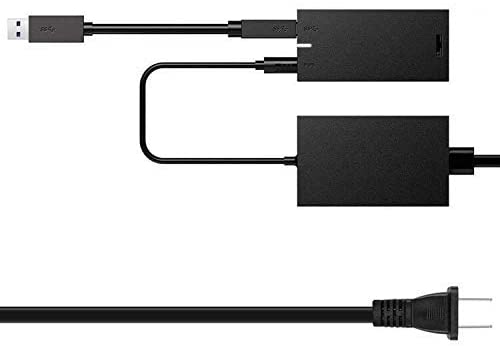

The S100 scanner also uses adapter cables which are connected in-between the sensor and the computer.

Kinect adapter

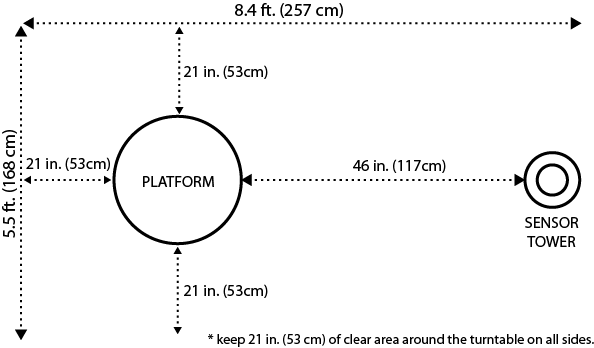

The S100 scanner has a larger footprint. It required a space that is 8.4 ft by 5.5 ft.

S100 Scanner dimensions

Styku S100X

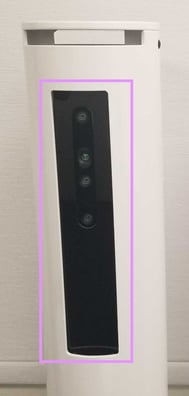

The Styku S100X uses a different sensor. It uses an intel sensor. This sensor has no logo and 3 light emitters with one lens.

Kinect_D455_Towers

The S100X scanner has a single connection from the tower to the computer and doesn't rely on an adapter.

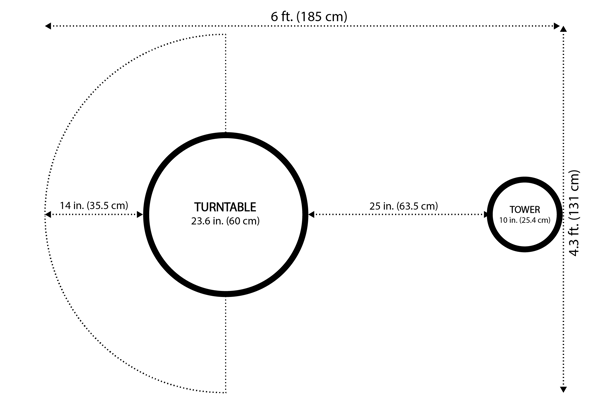

The S100X scanner also has a smaller footprint. It has a footprint of 6ft by 4.3 ft
