How to Scan in Styku Studio V5

Important Note: In Studio V5, the client needs to log in to their scan profile prior to scanning.  This is not the scanner administrator; this is the person who will be scanned.

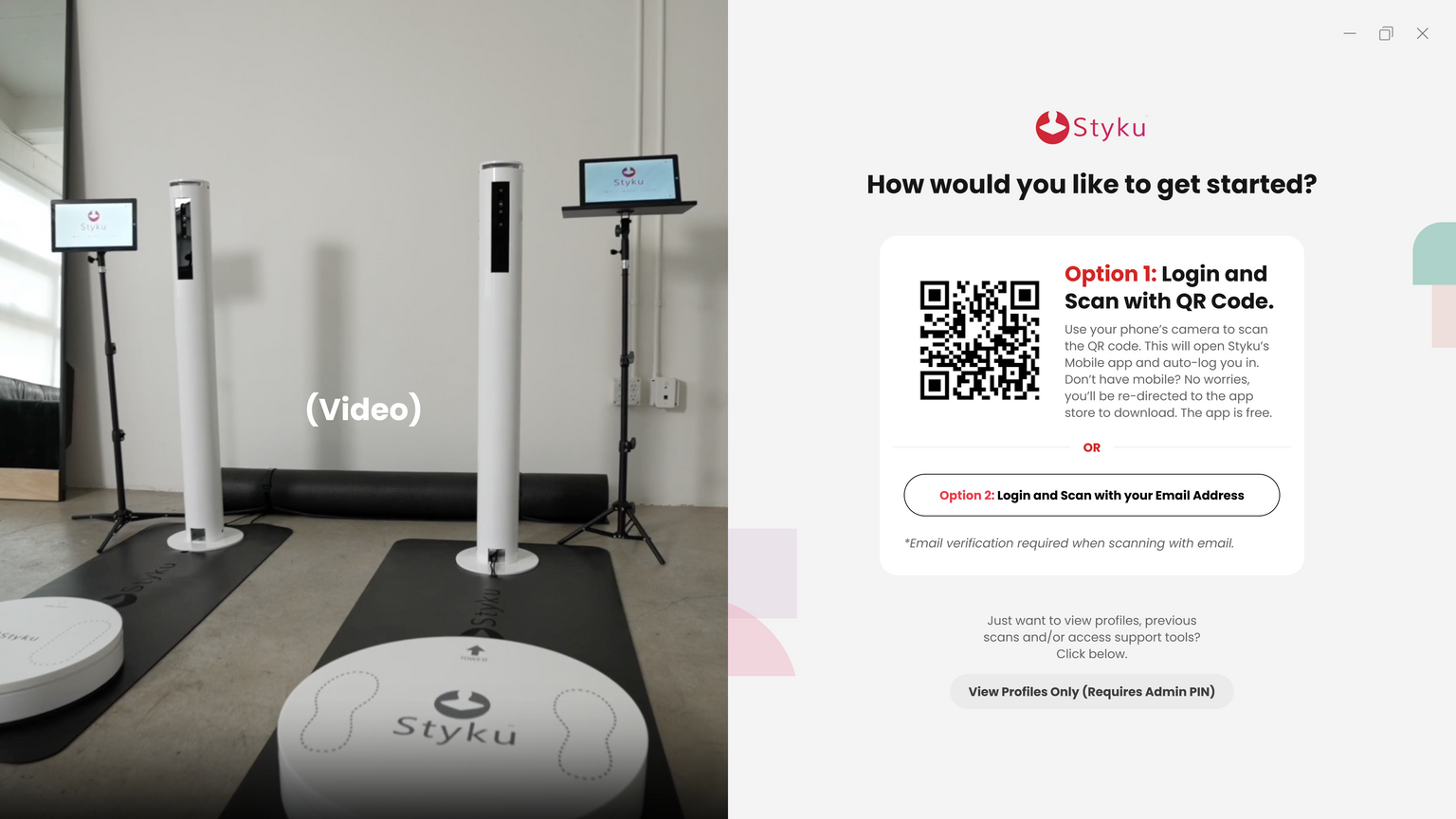

There are two options for scanning: Scan Using QR Code, and Scan Using Email.

To view profiles and set up the scanner, log in to your administrator account using the button near the bottom of the window.

How to Scan using QR Code:

Client scans QR code with phone camera
(Recommended: download app before scanning)

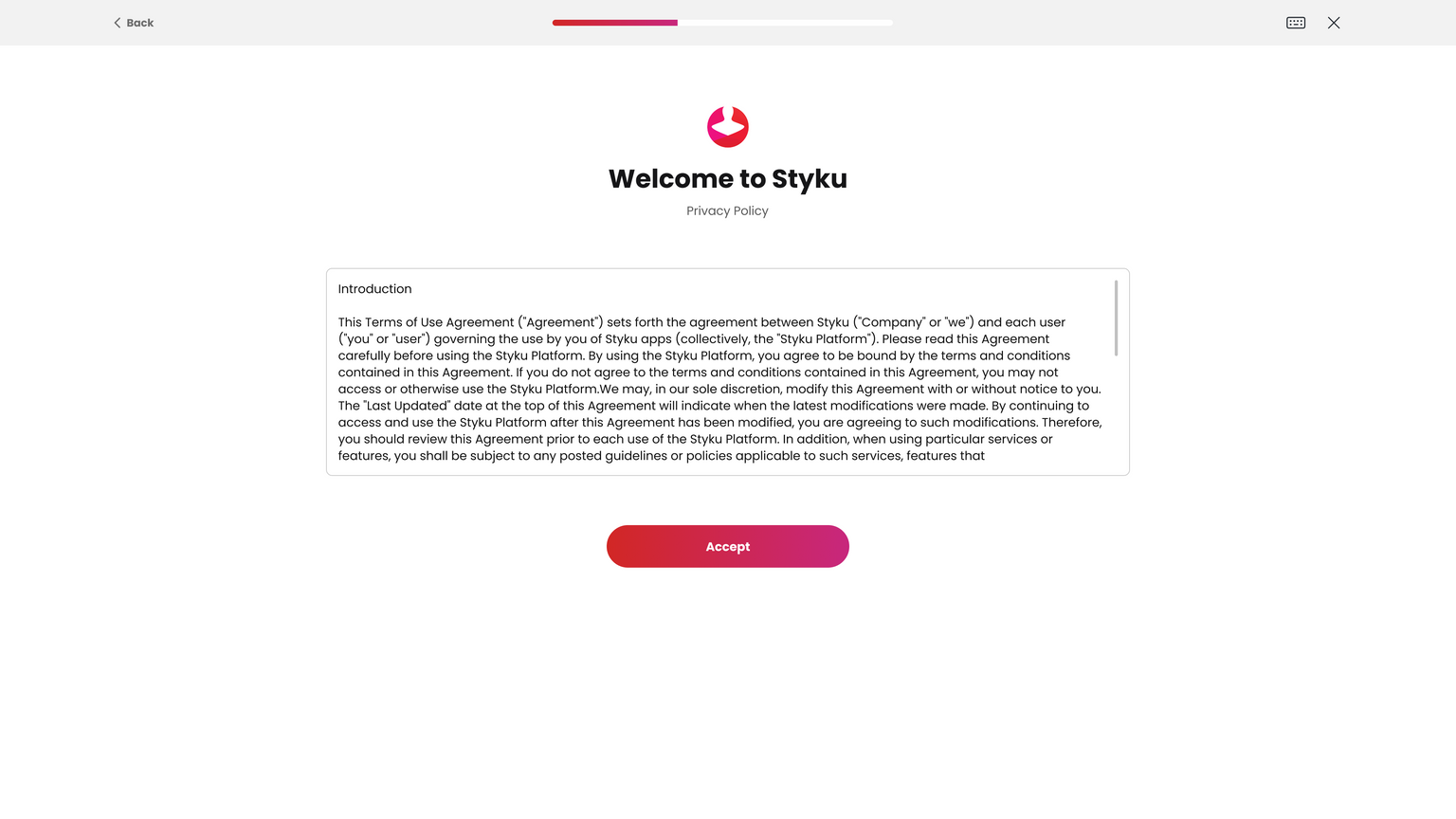

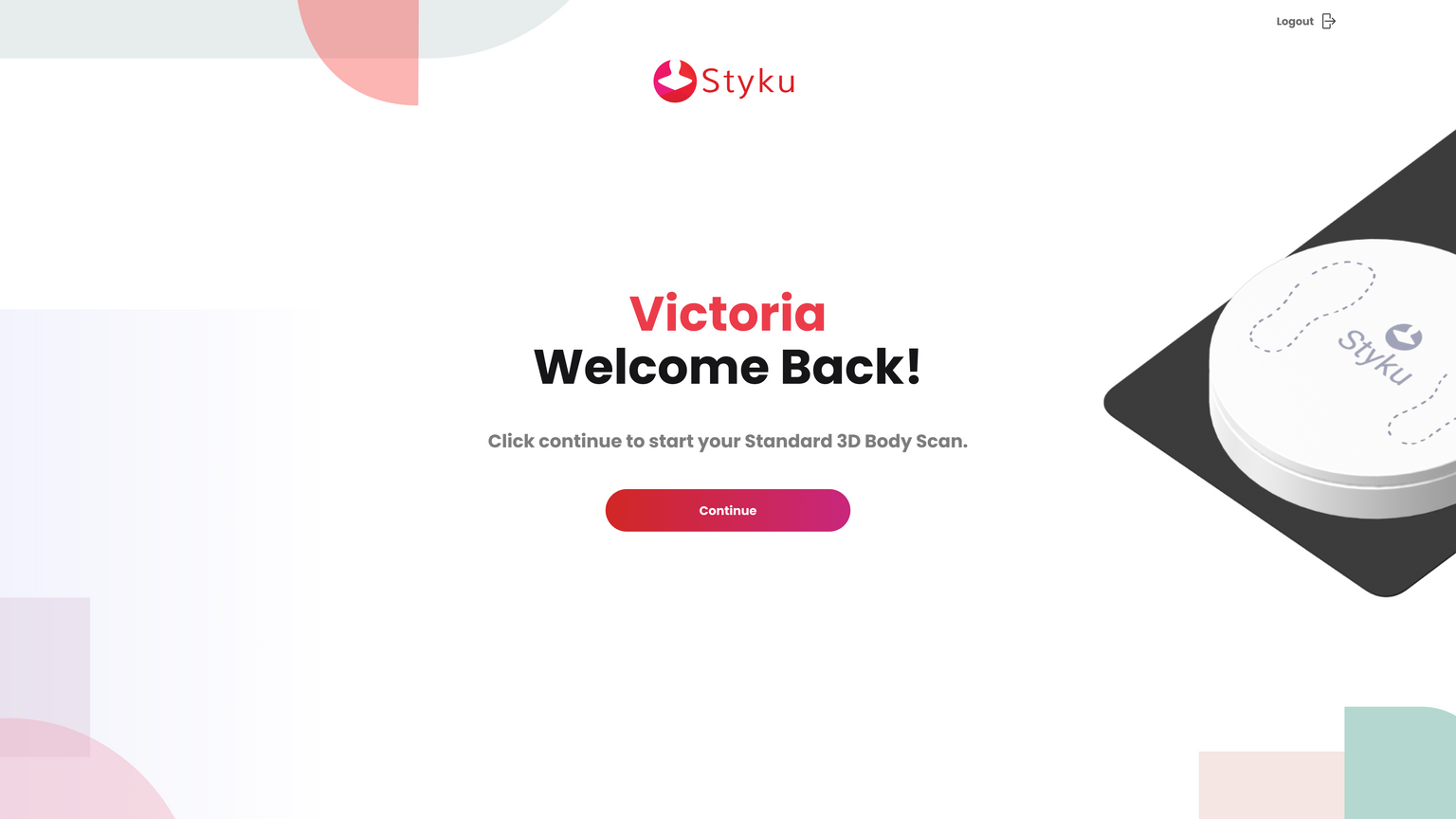

Select Continue on welcome screen

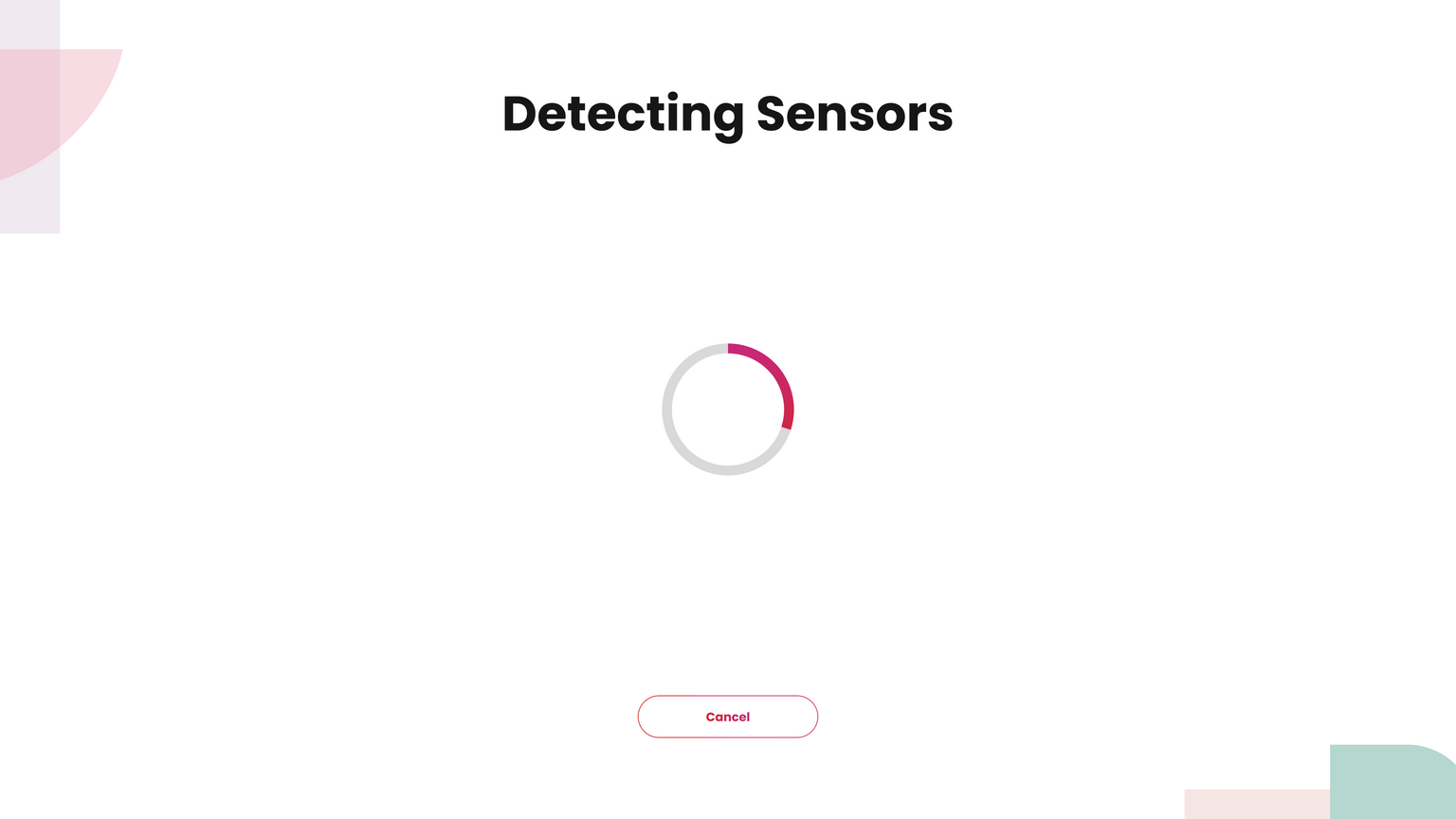

⚙️ System Check

System checks sensor + turntable

👕 Attire & Setup

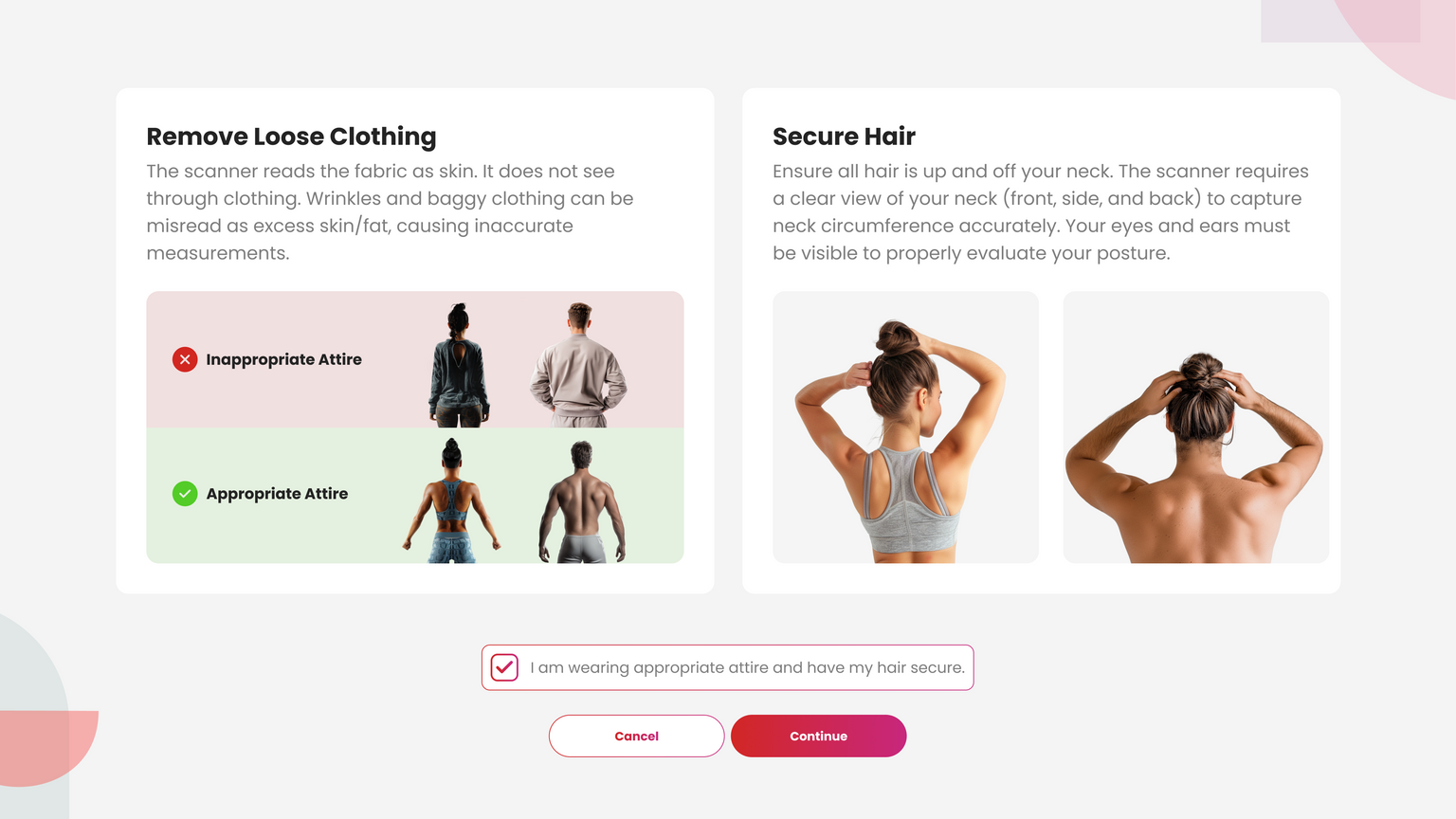

Confirm proper scan attire

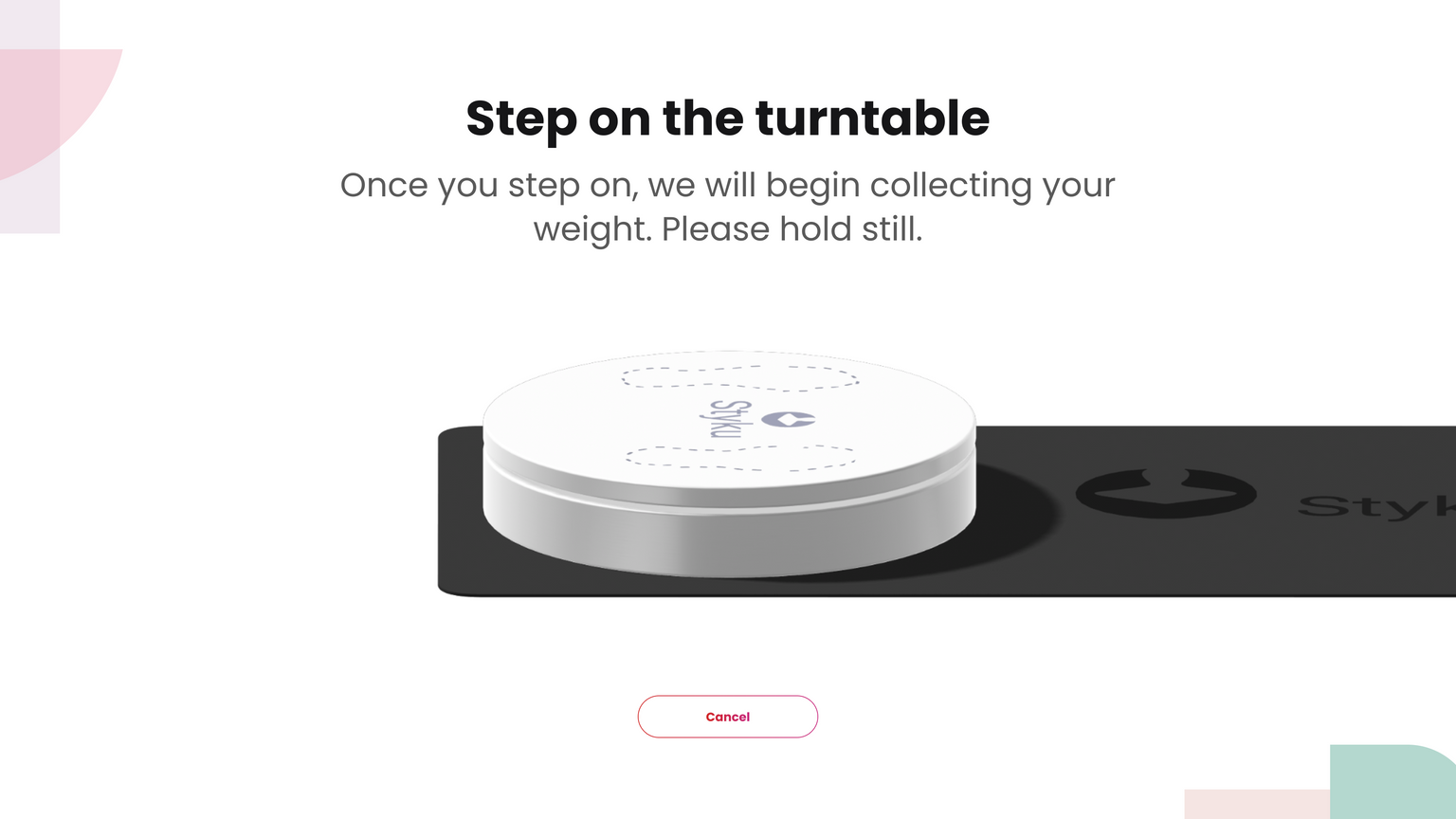

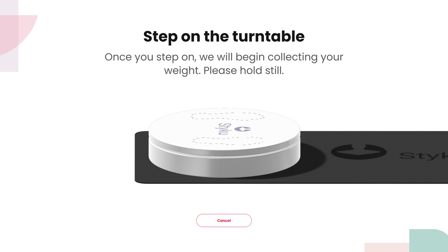

Client steps onto turntable for weight

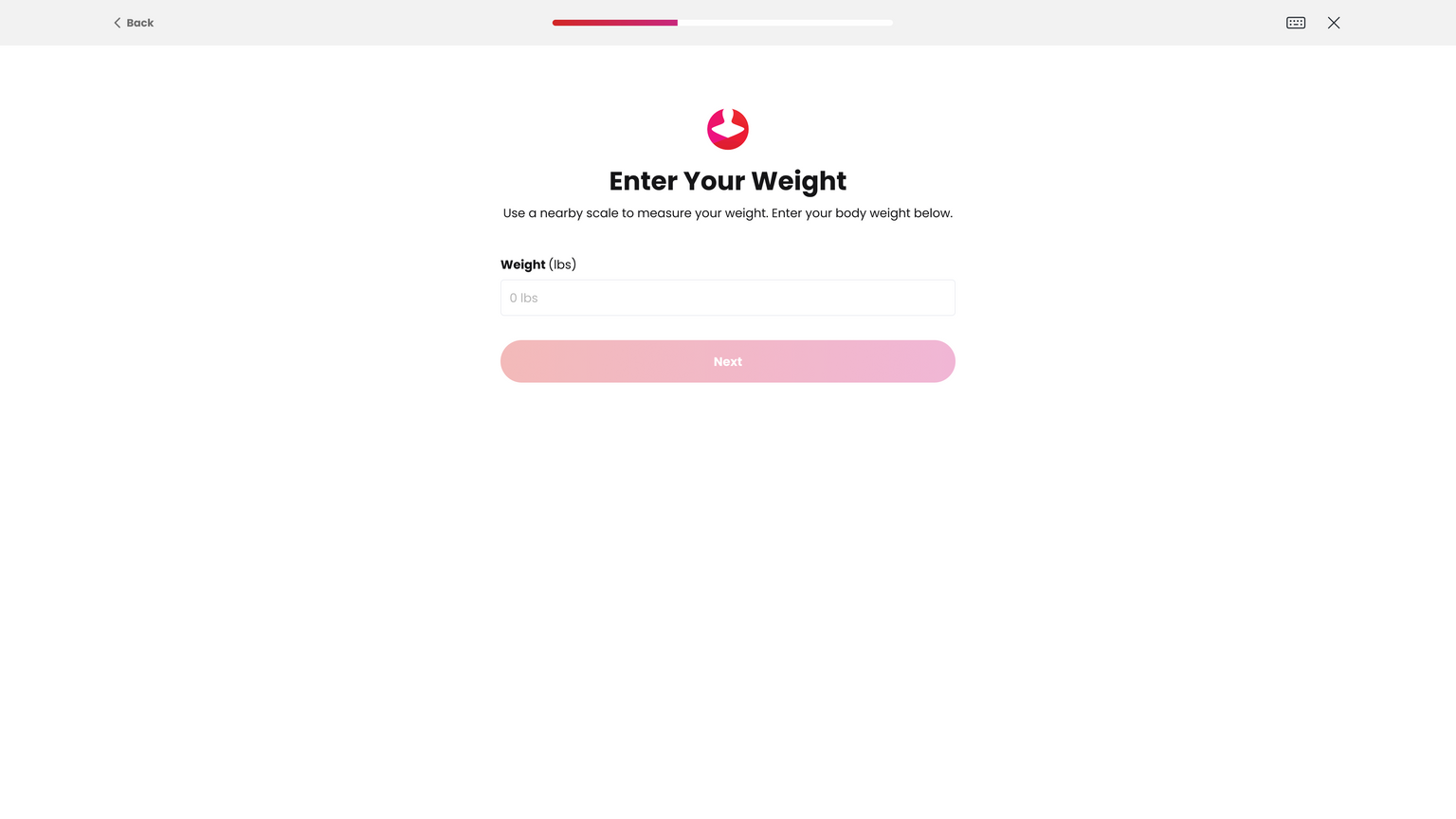

If weight not detected → Enter weight manually

🧍 Positioning

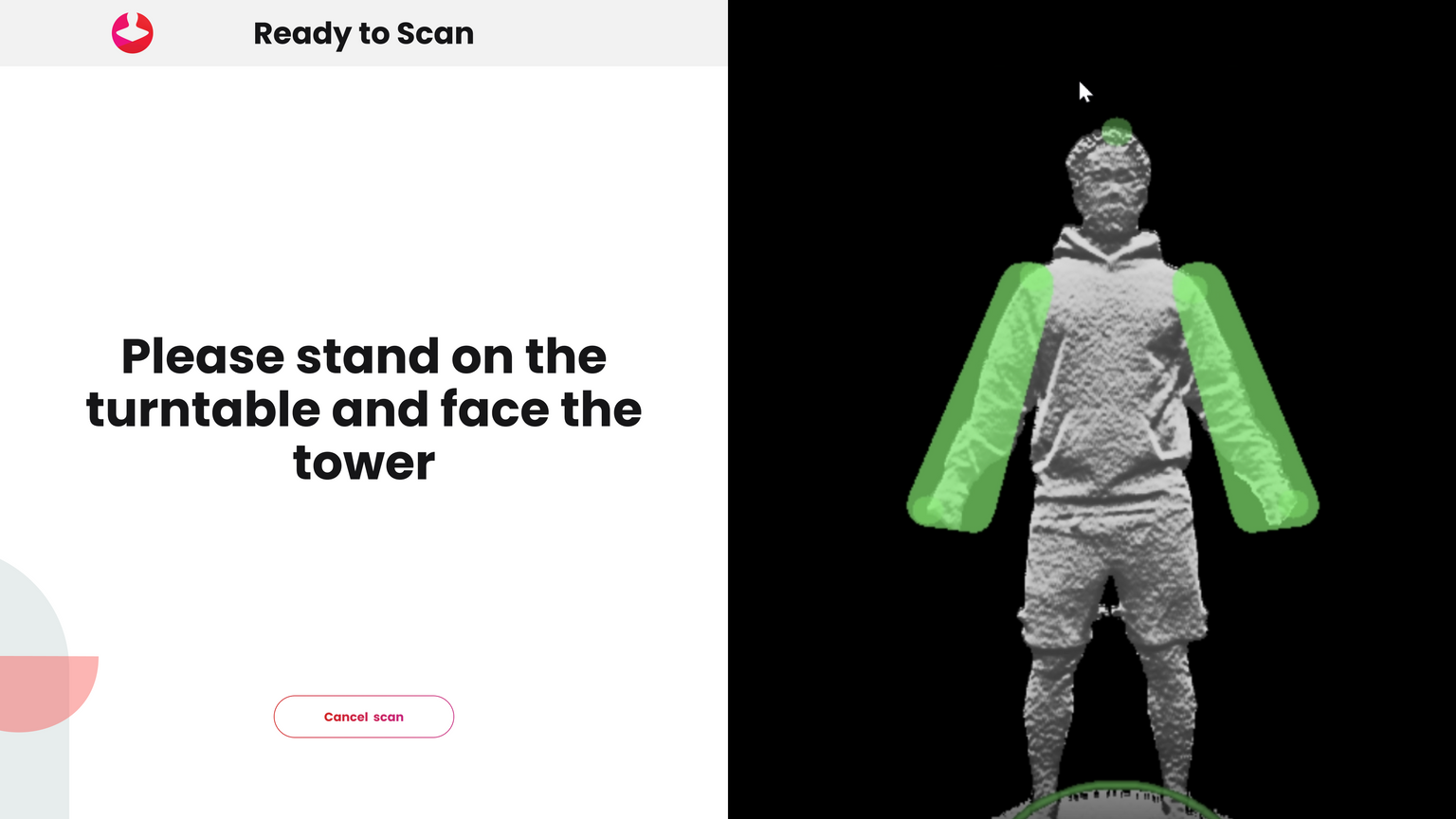

Assume A-pose

Align until pose frames turn green

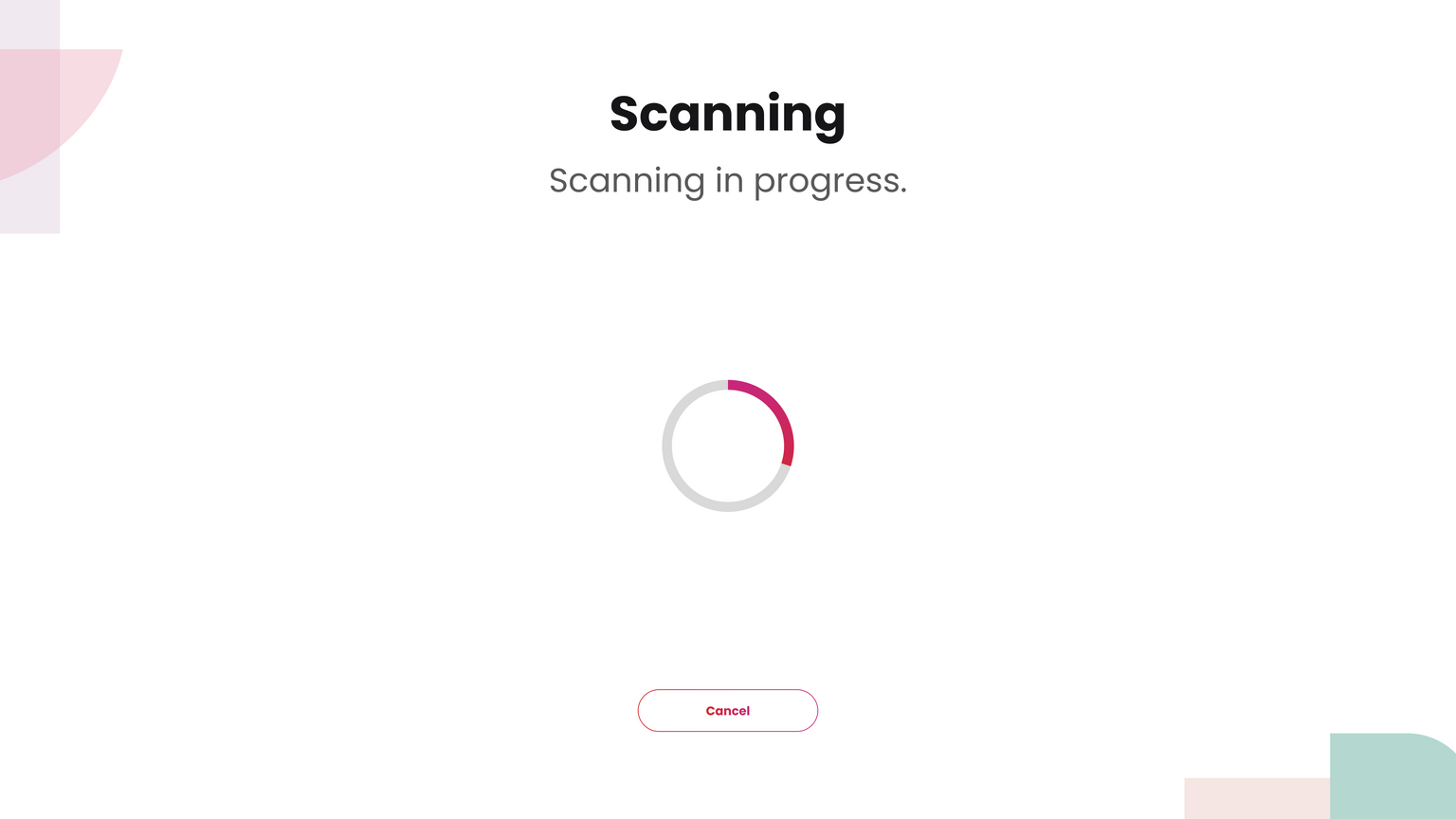

🔄 Scan in Progress

Scan begins

Remain still while spinning

⏳ Processing

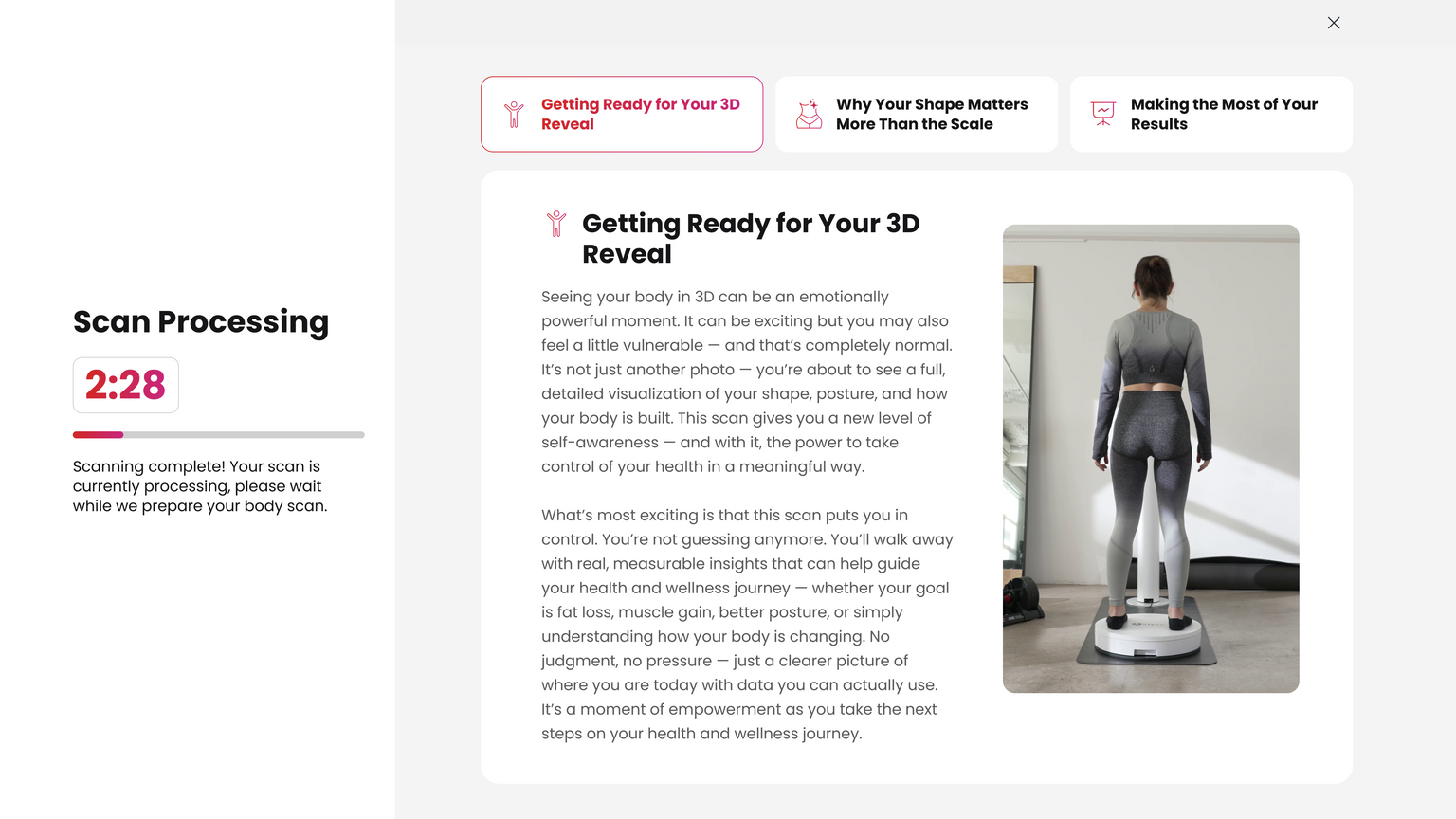

Scan processing and measuring

Remain in scan attire

✅ Review & Accept

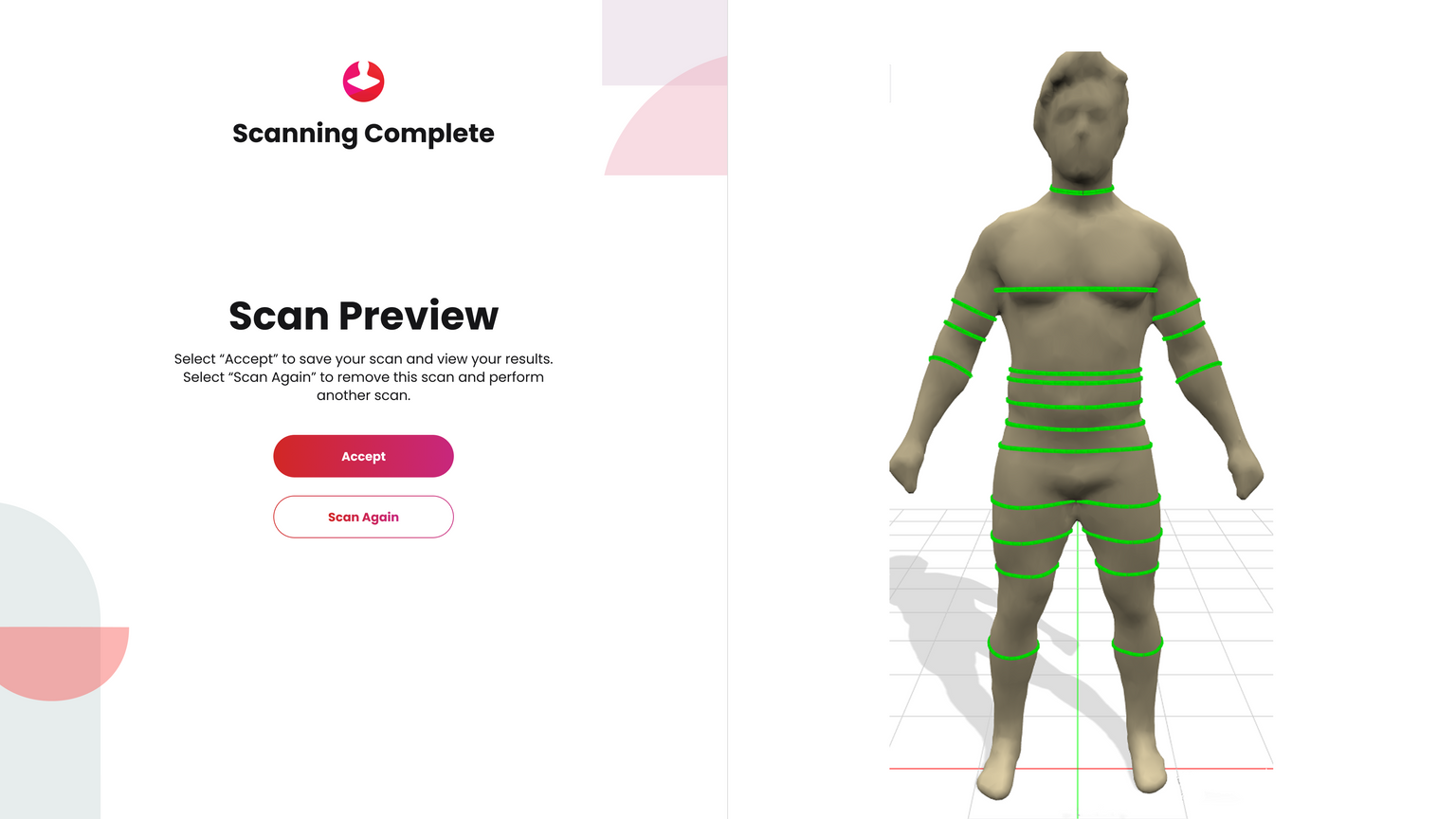

Review scan

Accept or Scan Again

Scan Again deletes the scan and restarts the process

Predicted measurements → Rescan recommended unless scan looks acceptable

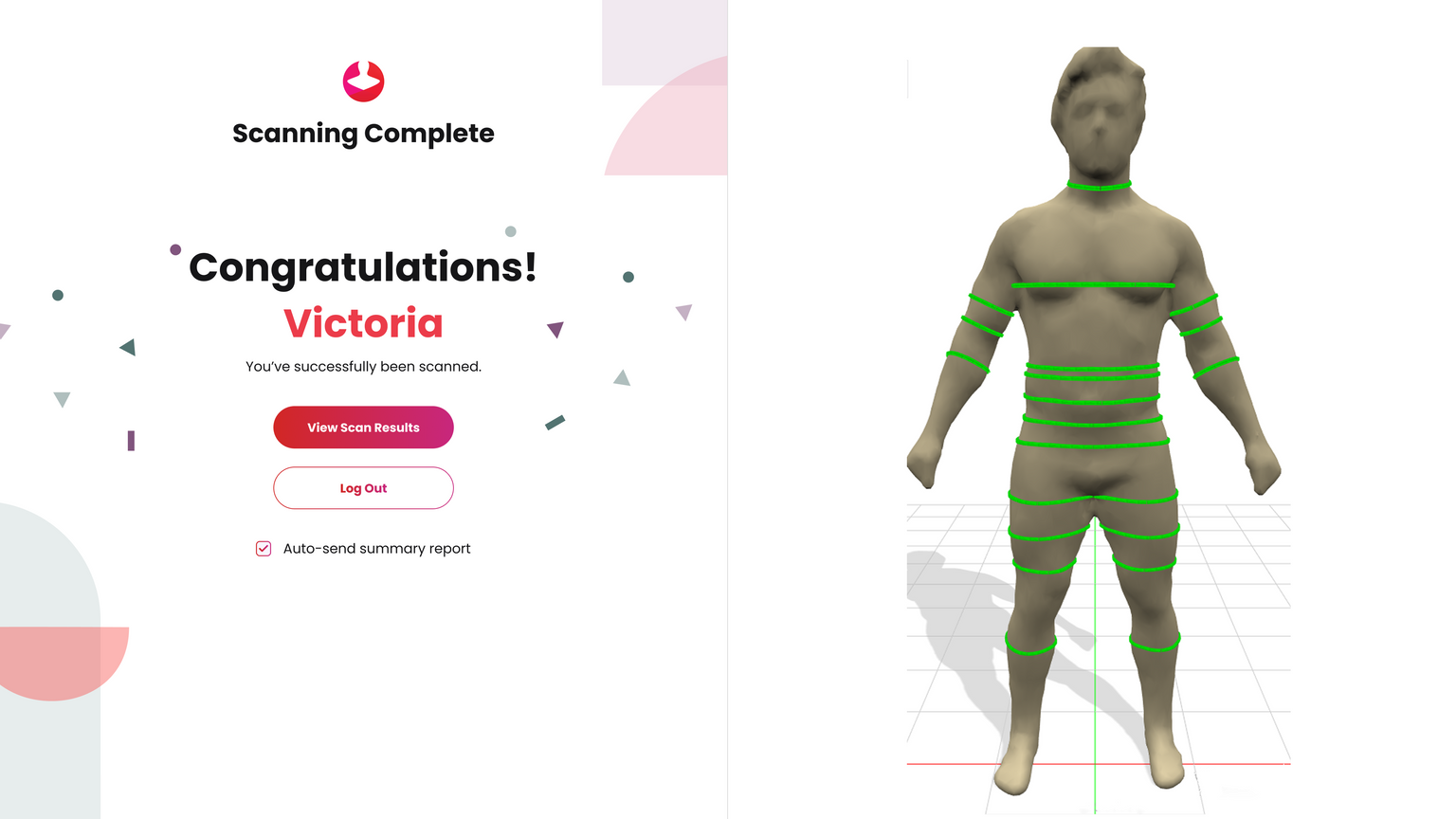

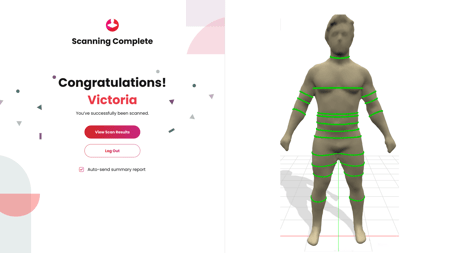

👀 After Scan

Scan accepted

Client may review results in the software or log out

📊 Compare Scans (Optional)

Tap Select Scans in bottom navigation

Choose scans to load into analysis

How to scan using Email:

Scan Steps

✉️ Continue with Email Login

Select Option 2: Login and scan with your email address

Client enters email address

👤 Profile Lookup

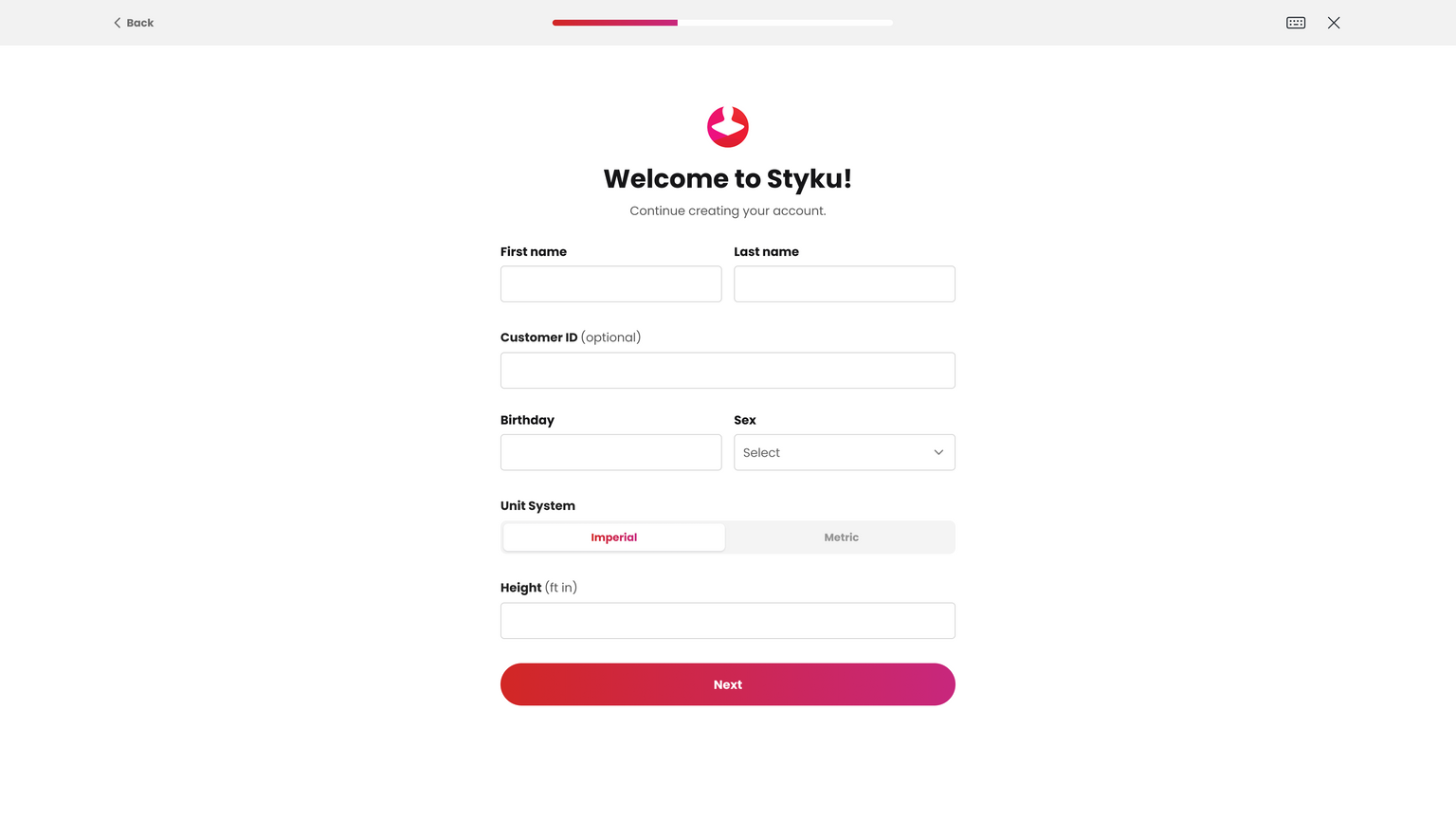

New client → Create profile

Returning client (this location) → Profile found

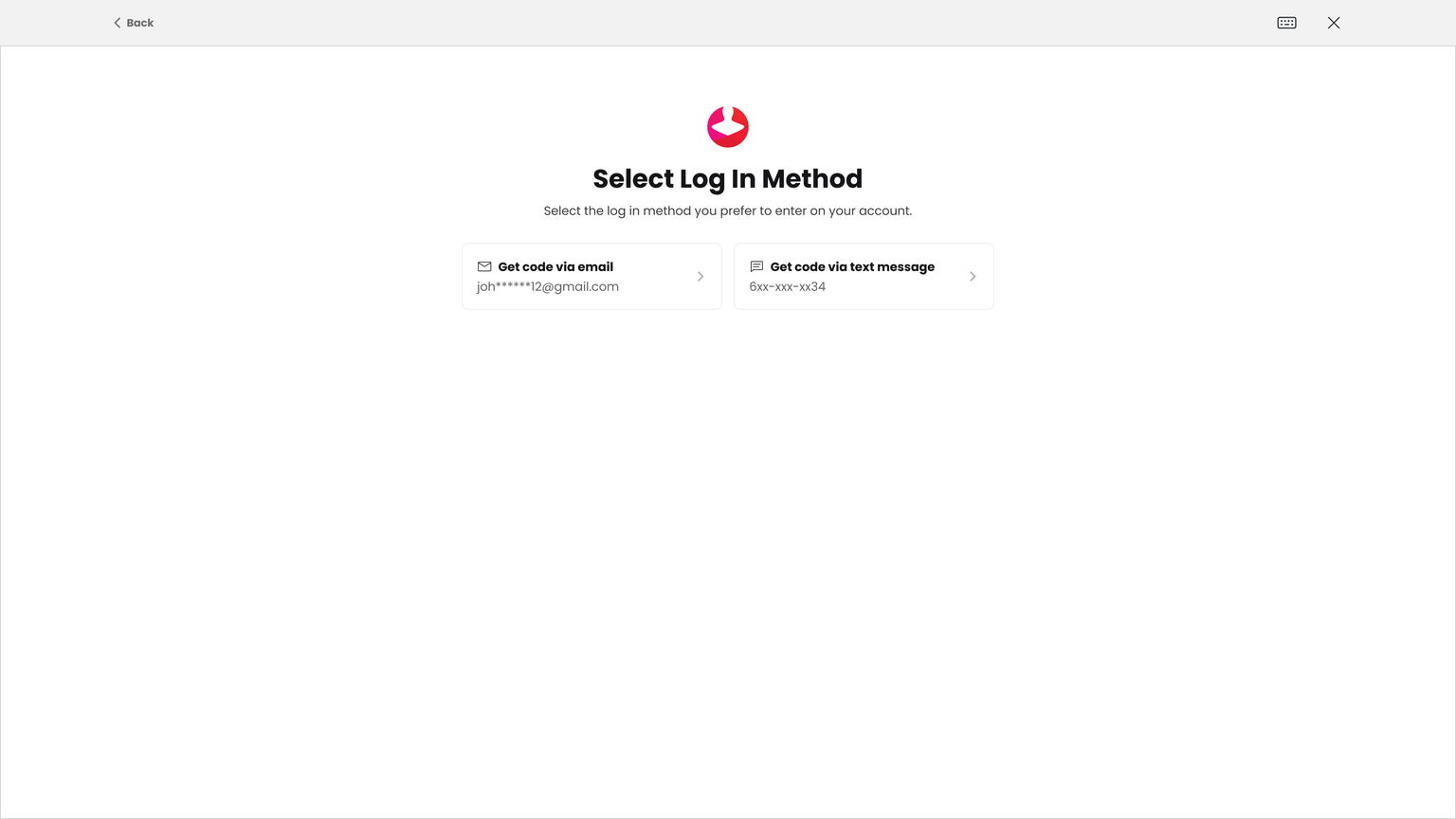

Verified mobile app user → Enter one-time verification code

⚙️ System Check

System checks sensor + turntable

👕 Attire & Setup

Confirm proper scan attire

Client steps onto turntable for weight

If weight not detected → Enter weight manually

🧍 Positioning

Assume A-pose

Align until pose frames turn green

🔄 Scan in Progress

Scan begins

Remain still while spinning

⏳ Processing

Scan processing and measuring

Remain in scan attire

✅ Review & Accept

Review scan

Accept or Scan Again


Scan Again deletes the scan and restarts the process

Predicted measurements → Rescan recommended unless scan looks acceptable

👀 After Scan

Scan accepted

Client may review results in the software or log out

📊 Compare Scans (Optional)

Tap Select Scans in bottom navigation

Choose scans to load into analysis

👤 View Profiles & Admin Settings (Admin Only)

From home screen, tap View Profile Only

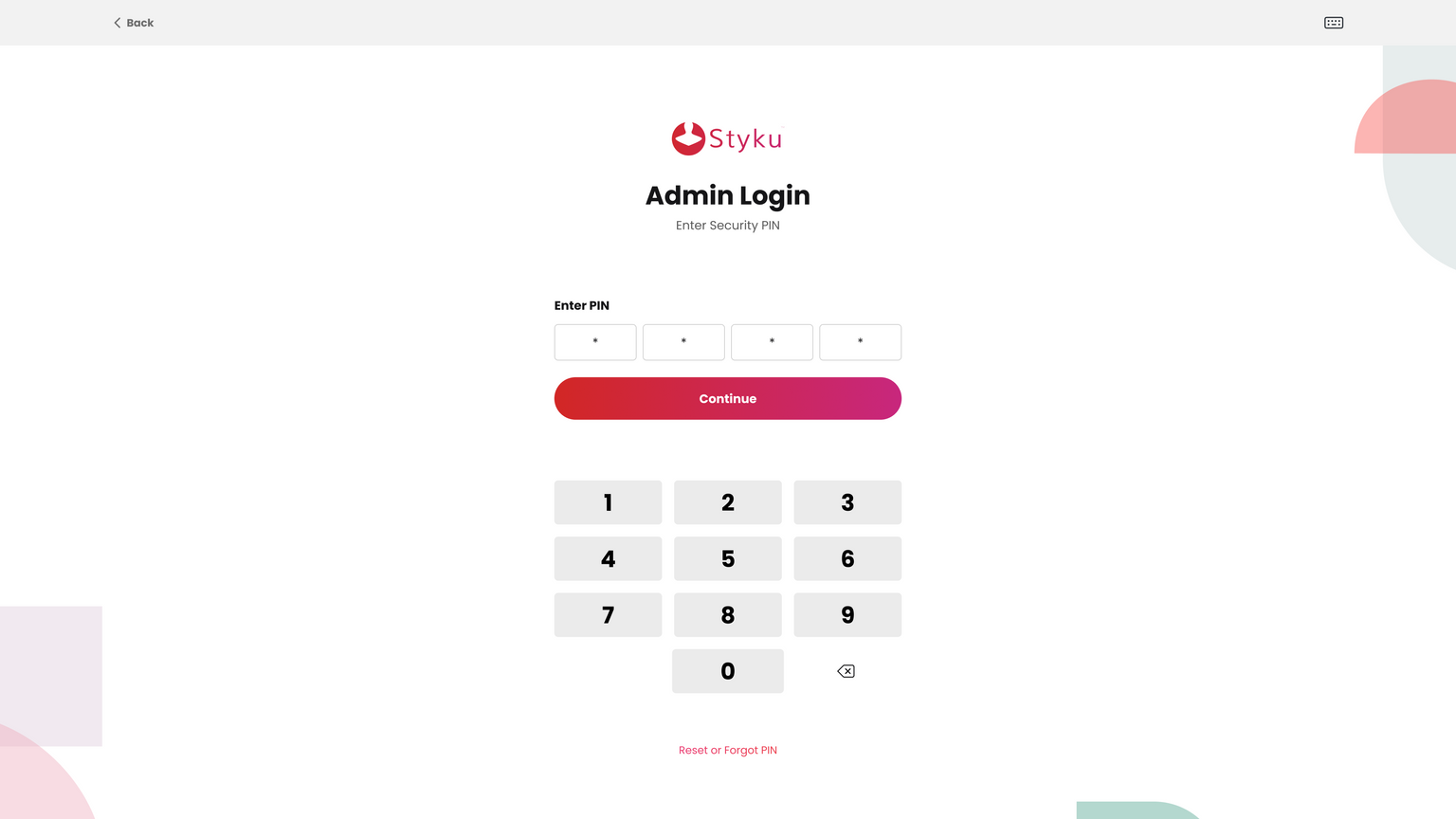

Enter Admin PIN

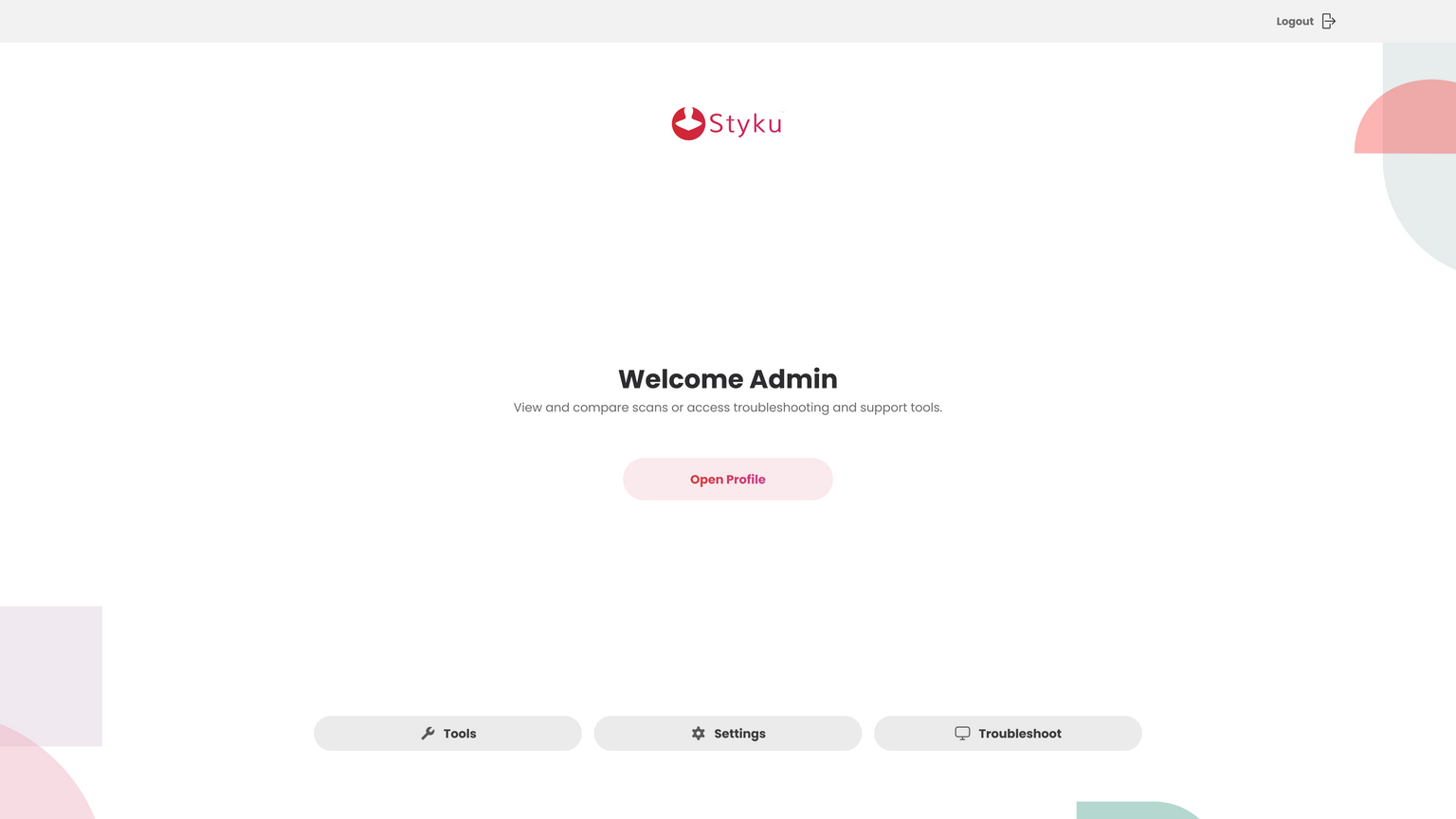

🛠 Admin Access

View client profiles and scans

Access settings, tools, and troubleshooting

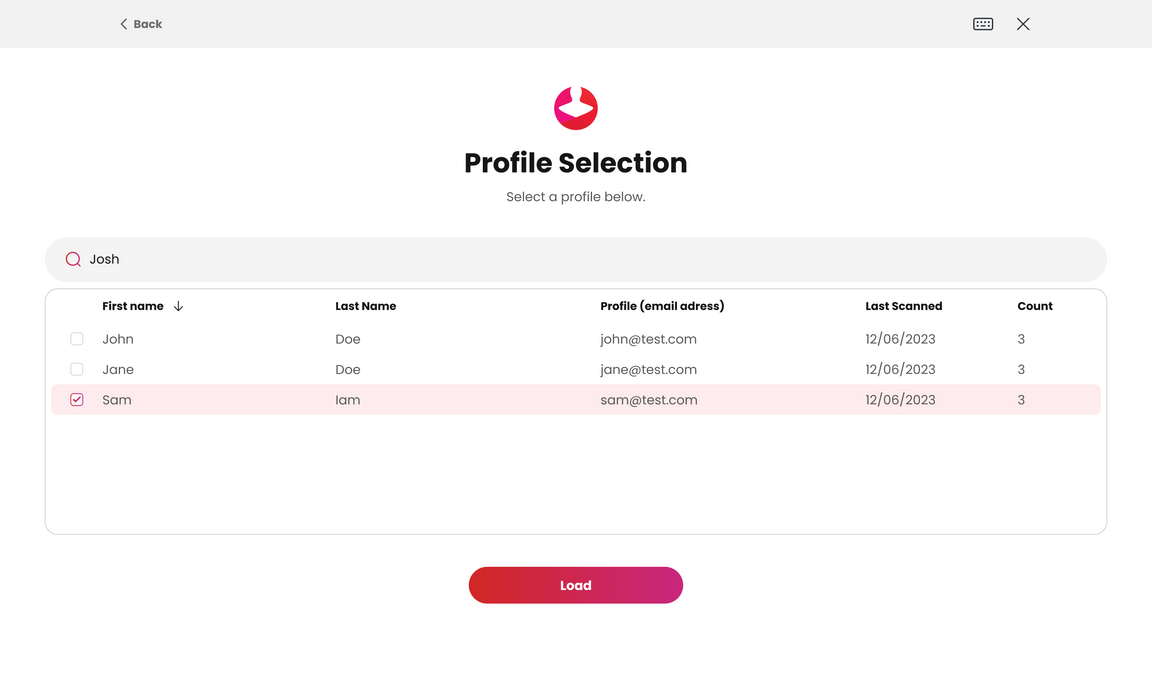

👥 Open Client Profile

Select Open Profile

Search or select client from list

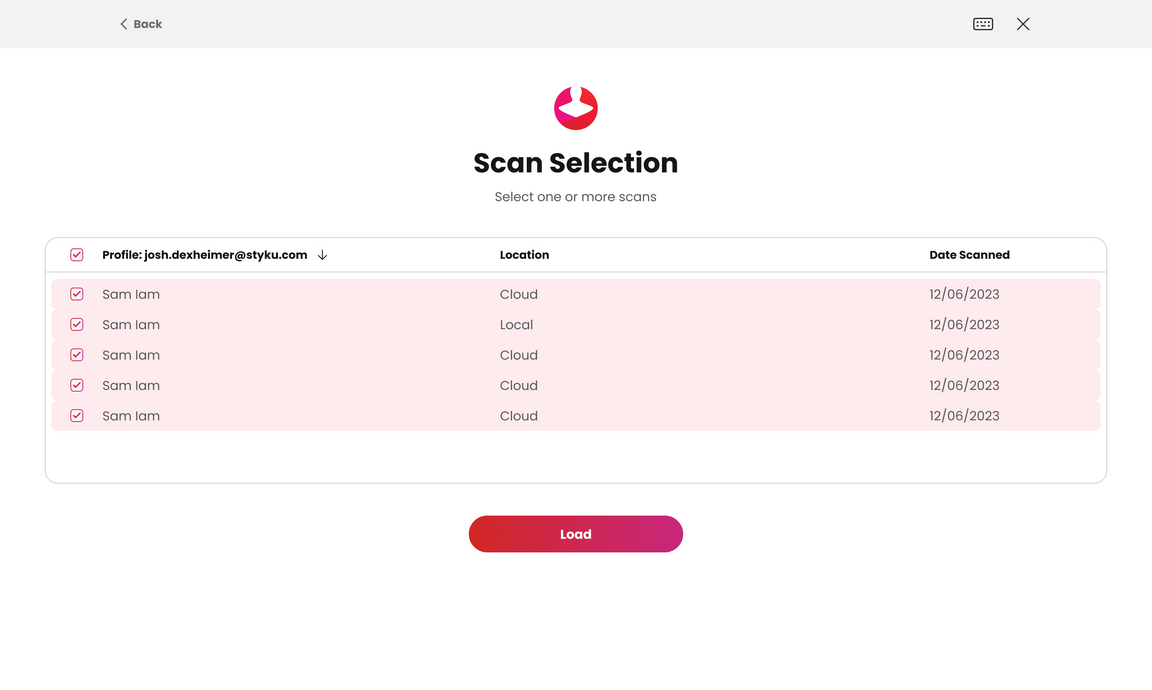

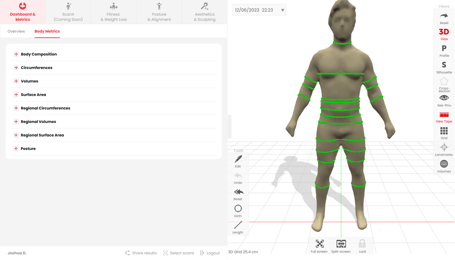

📊 View & Compare Scans

Select scans to compare

Scans load in analysis view
